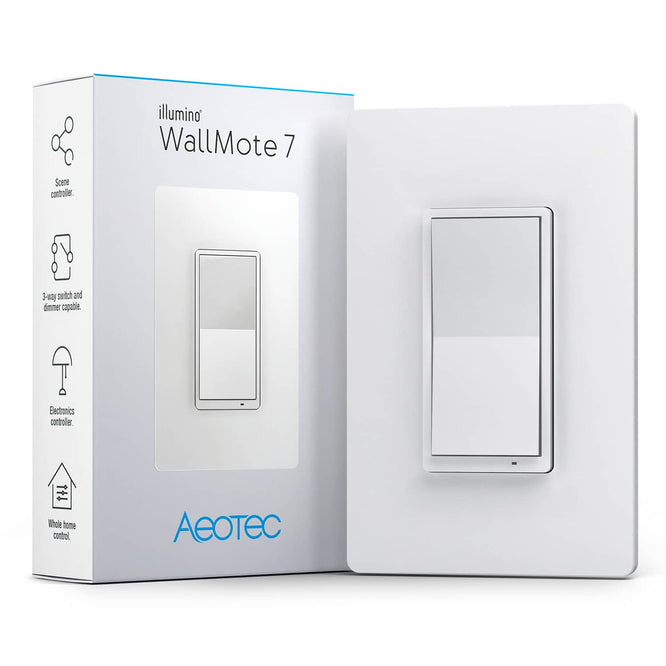

WallMote 7; Battery Powered Z-Wave Light Switch (ZWA022)

Aeotec WallMote 7; Battery Powered Z-Wave Light Switch (ZWA022)

Install a new switch anywhere without any wiring

Rating (3.0)
Z-Wave Plus V2
700 series
Unit Price
Regular price $3999 USD
Sale price $3999
Regular price $44.99 USD
Calculated at checkout

Battery powered Z-Wave remote control designed to look like a regular light switch. This Z-Wave remote control can be used to easily add a light switch or dimmer to any location in your home to control smart lighting.  This versatile smart remote can also be used as a scene controller.

Part of Aeotec's illumino range of switches, including illumino Dimmer Switch and illumino Switch, illumino WallMote 7;

  • looks and operates like a wall switch, but funtions as a battery-powered,  Z-Wave remote control
  • works as a Z-Wave scene controller with a total of 7 button-press combinations available (multi-tap functionality requires gateway compatibility)
  • powered by 2 x CR2032 batteries
  • can be wall and surface mounted using provided materials;
    • within a North American standard junction gang box
    • upon a wall using double sided tape or screws
  • can be used as a hand held remote control
  • can be removed from its wall-mount easily as it attaches magnetically
  • is compatible with Decora face plates

While it looks like a wall switch and operates like a wall switch, what makes WallMote 7 truly powerful is that it is really a remote control. Battery powered, you just need to stick it on a wall or surface to install it. Once synced with your hub, you can control any dimmer, switch or automation routine by using WallMote 7 as you would any other switch.


  • Product Weight: 20 g / 0.7 oz
  • Dimensions: 104 x 46 x 13 mm / 4 x 1.8 x 0.5 "
  • Z-Wave Security level: Non-secure, S2 Unauthenticated, or Authenticated
  • SmartStart: Yes
  • Repeater: No
  • Beaming: No
  • Number of child nodes: 2
  • Number of buttons: 2
  • Press functions per Group Association:
    Press and Hold
  • Press functions per Scene use:
    2x Tap
    3x Tap
    4x Tap
    5x Tap
    Press and Hold
  • Control use:
    Scene Control
    Group Association
  • Power supply: 2x 3.0V CR2032 batteries. Note: do not use bitter CR2032 batteries, these batteries have a bitter coating to them which may cause the battery not to work in some cases due to the coating. Make sure to use batteries that do not have any coating.
  • Operating temperature: 0°C to 40°C / 32°F to 104°F
  • Operating humidity: 8% to 80%
  • Operating distance: wireless range up to 144ft (35m) indoors and 394ft (120m) outdoors

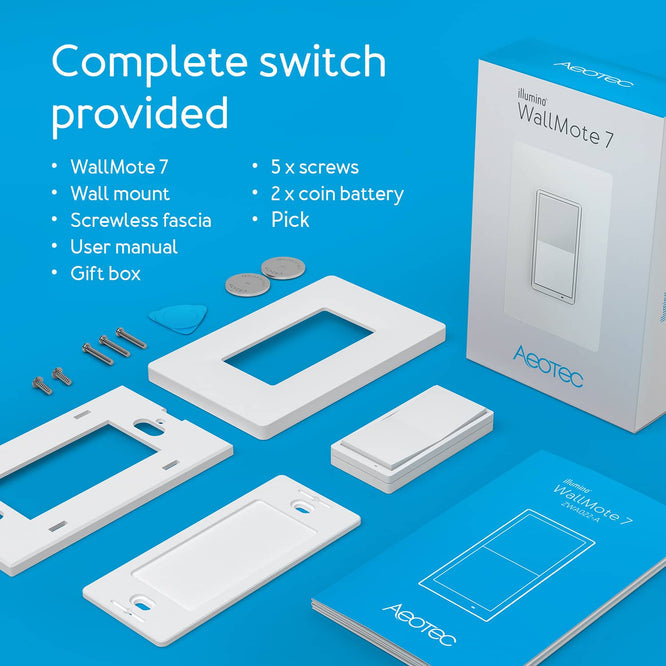

Ships With

  • Aeotec illumino WallMote 7 (ZWA022)
  • Wall Plate for wall mounting
  • Screw Plate
  • Face Plate
  • Double-Sided Adhesive Tape for mounting without screws
  • 2 x Long Screws
  • 2 x Short Screws
