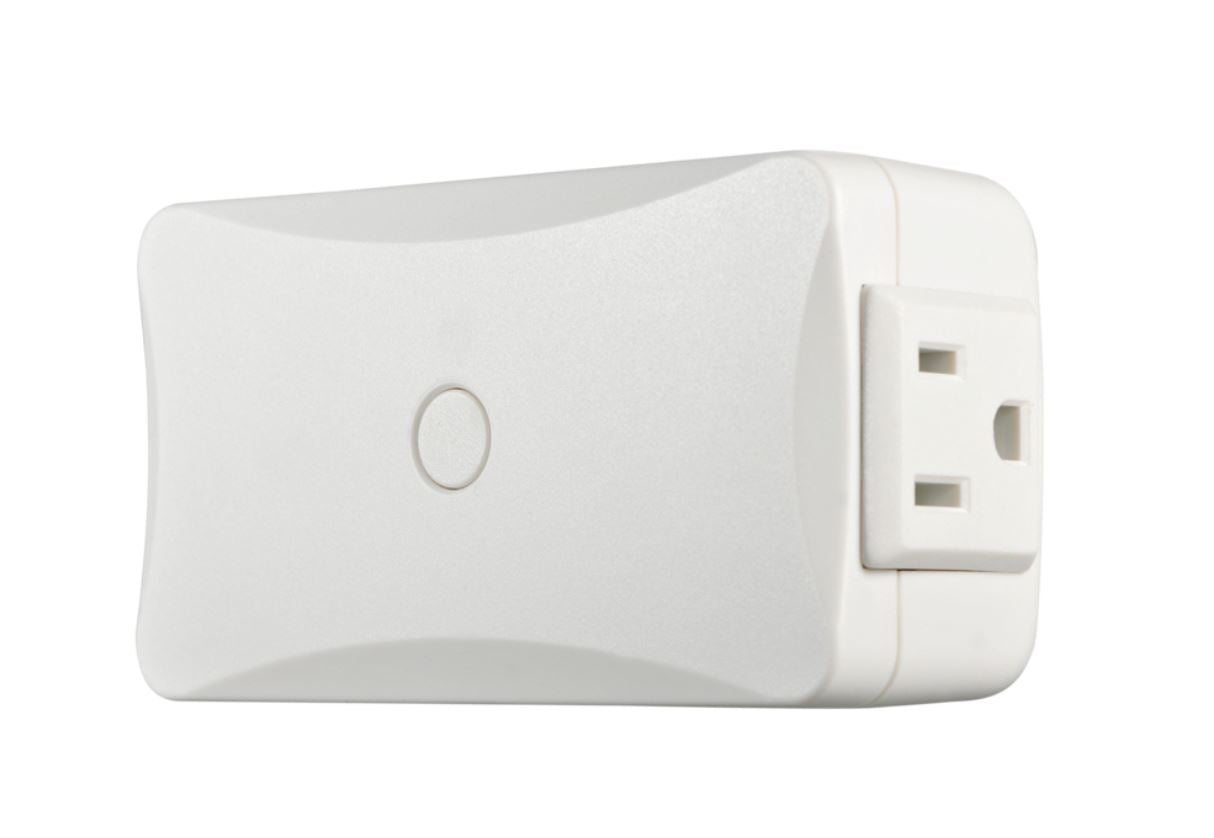

Remotec Z-Wave Plus Dimming Switch Module (Dual mode) - ZDS-220NA
The ZDS-220 is a Z-Wave enabled device and is fully compatible with any Z-Wave Plus enabled network. It can be configured as either a “DIMMER” or a “SWITCH” device. It allows remote Dimming or ON/OFF control of specified lamps. Each module is designed to act as a repeater, which will re-transmit a radio frequency (RF) signal by routing the signal around obstacles and radio dead spots to ensure that the signal is received at its intended destination.
ZDS-220 is a security enabled Z-Wave plus device. A security Enabled Z-Wave Plus Controller must be used in order to fully utilize the product.
Model no: BW8131US (ZDS-210NA)
RF frequency: 908.42 MHz
Input voltage / frequency: 120VAC / 60 Hz
RF operating distance: up to 40m (line of sight between the Wireless Controller
and the closest Z-Wave receiver module at open area)
Max. output power: DIMMER: Max Incandescent load 330W 2.75A; SWITCH: Max Incandescent Load 330W 2.75A
Max Resistive Load 500W 4.16A
Over Temperature protection: Detected internal temperature, and cut off output once OTP triggered (Remark: Under over loading or
temperature situation, it will fail to start up).
Dimension (L x W x T): 100 x 54 x 39mm
Storage Temperature: -10~60 °C
Operation Temperature: 0~40 °C
Relative Humidity: 5~95%
