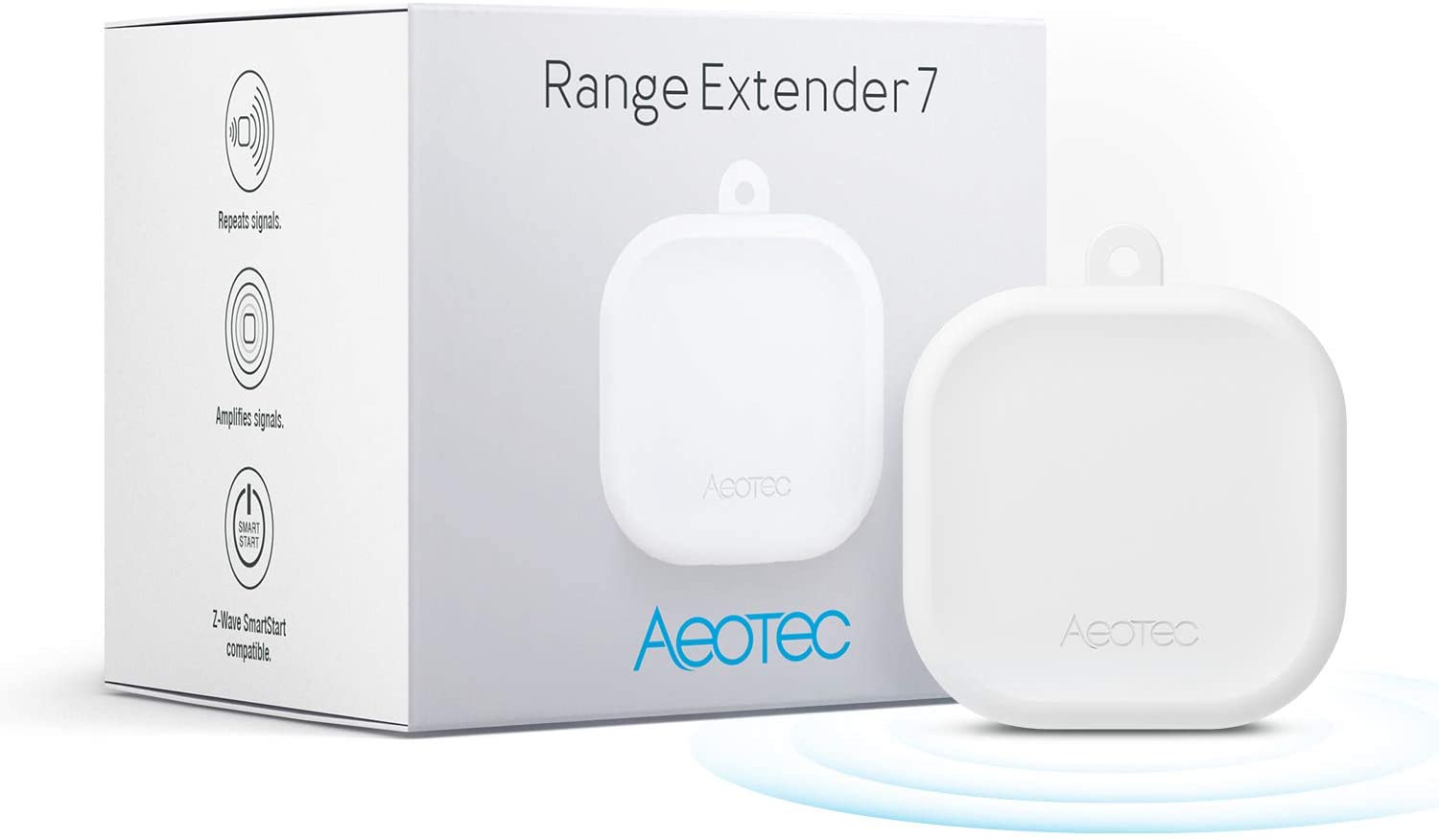

Range Extender 7; Zwave Extender and Repeater, Z-Wave Plus 700 series, S2, Smart Start (ZW189)
Aeotec Range Extender 7; Zwave Extender and Repeater, Z-Wave Plus 700 series, S2, Smart Start (ZW189)
Fix weak signals with Z-Wave Plus wireless repeater
One technology that has made Z-Wave the leading standard for home automation is its use of mesh communication. With it, Z-Wave devices talk to each other, relaying their communication across the network via other, mains powered devices. Z-Wave devices communicate this way, as do Z-Wave hubs. But you don't always have a mains-powered Z-Wave device exactly where you need it, so mesh networks can end up with dark spots and you can encounter poor performance.
Range Extender 7, a dedicated Z-Wave repeater and amplifier, solves Z-Wave networking issues. Installed in areas of weak performance, Z-Wave devices will automatically route their communication via it. Range Extender 7 will then amplify and repeat the signals on through the rest of your Z-Wave network or send those signals direct to your automation hub.

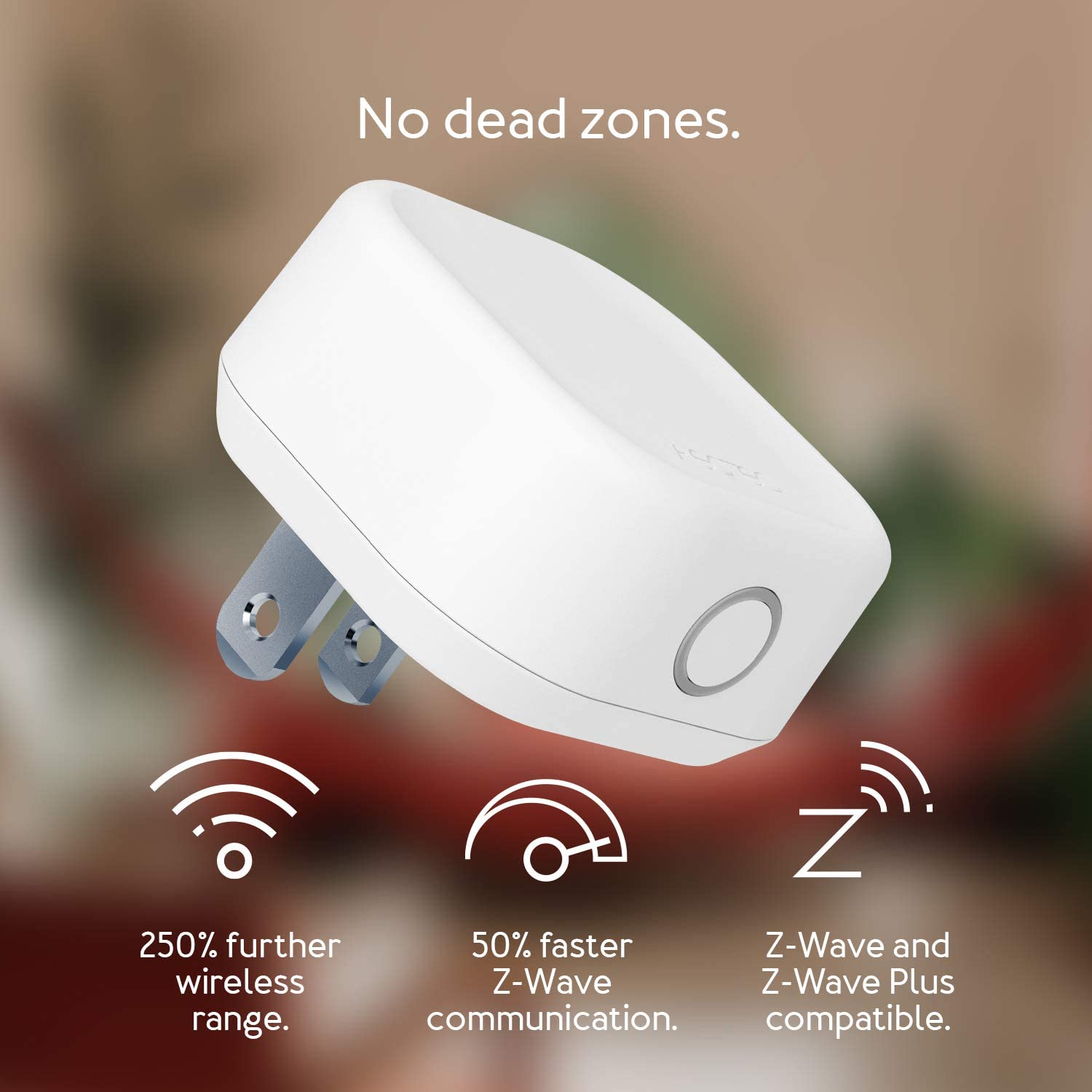

- Wireless ZWave Repeater - 250% further wireless range. Amplifies and repeats weak signals boosting the range and reliability of weak Z-Wave / Z-wave Plus devices.
- 50% Faster Z-Wave Communication. Built upon 700 series Z-Wave Plus v2, Aeotec Range Extender 7 offers stable performance and achieves seamless automation functionality.
- Security System 2 compatible. Range Extender 7 can amplify and repeat signals from security and safety devices, including door locks and smoke sensors.

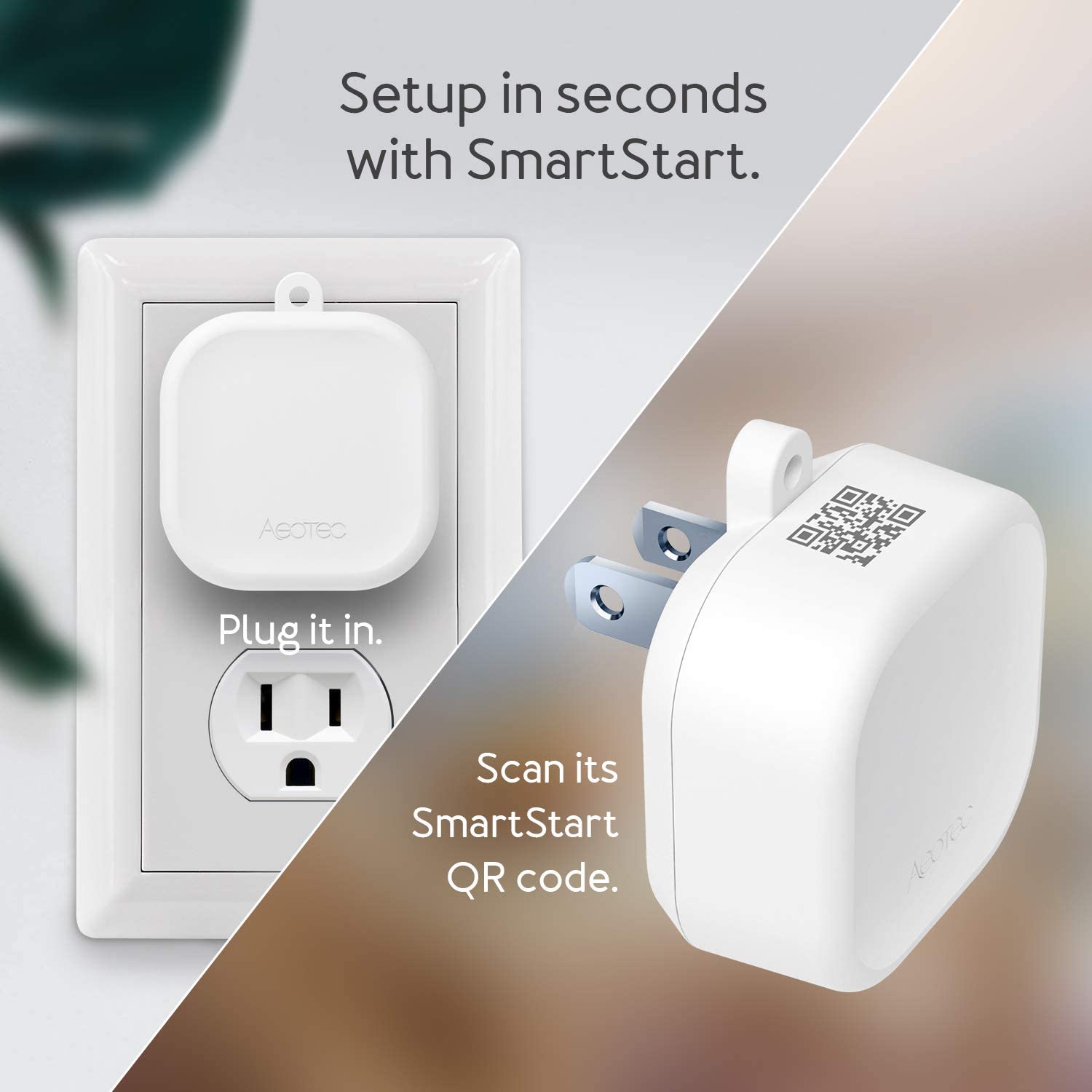

- SmartStart QR code capable. Simplest possible device installation; simply scan its QR code with a compatible app.
- Compatible with ZWave hubs including Control4, Fibaro, SmartThings, Vera and others.
- Easy as plug and play installation.
- Compatible with all versions of Z-Wave, from 100 series to the newest 800 series.
- Plug type: A
- Dimensions: 53.2 x 46 x 40 mm / 2" x 1.8" x 1.6"
- Z-Wave Plus v2, 700 series
- Z-Wave SmartStart compatible
- Z-Wave S2 security compatible supporting both S2 Unauthenticated and S2 Authenticated
- Operating temperature: 32°F to 104°F/0°C to 40°C
- Operating distance indoors: more than 70 metres / More than 229 feet
- Operating distance outdoors: up to 150 metres / Up to 492 feet
- AC input: 120V 60Hz, Max: 100mA
- Certified to FCC and ETL standards
- Z-Wave Plus certification number ZC12-19080007
A list of which gateways Aeotec products are compatible with is available at that link.
