RaZberry Gen 2 Z-Wave+ GPIO Daughter Card - ZMEURAZ2

SKU ZMEURAZ2
Sold out
$54.99

Create a Z-Wave Smart Home Gateway with your Raspberry Pi

  • Description
  • Specs
  • Docs

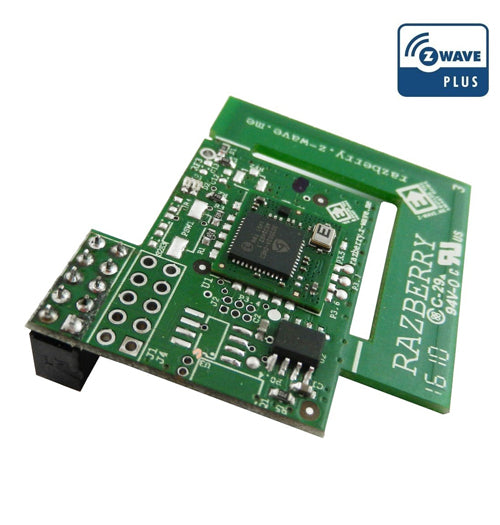

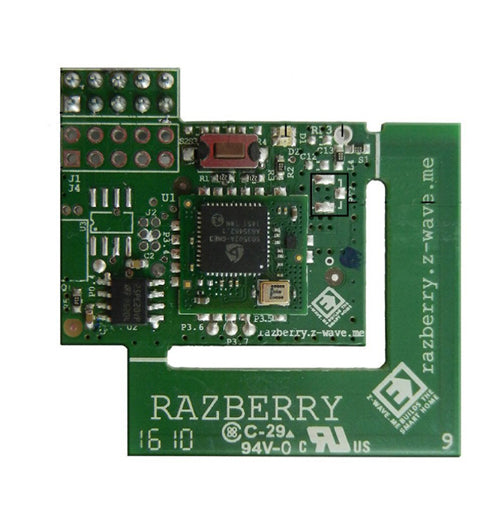

RaZberry turns your Raspberry Pi into a Z-Wave enabled smart home gateway. There are three parts:

1.RaZberry Z-Wave hardware shield that is plugged on top of the Raspberry Pi 2. Raspberry Pi (works with all Raspberry Pi type A, B, B+, 2, Zero and 3) 3. Z-Wave controller software running on the Raspberry Pi itself.

Our Raspberry Pi Cards come with Z-Way Home Automation Software License built on them so its extremely easy getting started.

Easily the most robust Z-Wave controller on the market. As seen in the Installer Only Z-Wave tool.

ZWAVE PLUS - Comes with the latest Z-Wave 500 Series Chip. Longer Ranger, OTA, Higher - Bandwidth and More! (ZM5202)
COMPATIBILITY - Works with all Raspberry Pi computer. Type A, B, B+, 2, Zero and 3
VERSATILE Z-WAVE CHIP - Make changes to your Frequencies (908 ... 917 MHz): USA Default, All America ex. Brasil and Peru, Israel (ISL)
ZWAY SOFTWARE - Comes preloaded with ZWay Home Automation Software
HOME AUTOMATION - Have these most flexibly with your home automation project using a raspberry pi and Linux!

Features:

  • ZWAVE PLUS - Comes with the latest Z-Wave 500 Series Chip. Longer Ranger, OTA, Higher - Bandwidth and More! (ZM5202)
  • COMPATIBILITY - Works with all Raspberry Pi computer. Type A, B, B+, 2, Zero and 3
  • VERSATILE Z-WAVE CHIP - Make changes to your Frequencies (908 ... 917 MHz): USA Default, All America ex. Brasil and Peru, Israel (ISL)
  • ZWAY SOFTWARE - Comes preloaded with ZWay Home Automation Software
  • HOME AUTOMATION - Have these most flexibly with your home automation project using a raspberry pi and Linux!

Note: The RaZberry works with all third party Z-Wave software supporting Sigma Serial API. The transceiver firmware communicates with the Z-Way communication stack using the serial interface /dev/ttyAMA0. The Z-Way communication protocol stack organizes and manages the Z-Wave network and its devices and offers a simple to use and simple to understand User Interfaces hiding most of the complexity of the Z-Wave wireless network. The Z-Way API allows to write own Applications and Designs on top of the stable Z-Way protocol stack. The Application Programmers Interface to do this is documented and can be used without any Non Disclosure Agreement Restrictions

Z-Wave Transceiver: Sigma Designs ZM5202
Wireless Range: Min. 40 m line of sight indoor
Self-Test: On power-on both LEDs must shine for about 2 seconds and then go off. If they don’t, the device is defect and must be returned
Dimensions/Weight: 20 mm x 40 mm/ 16 gr.
Display: Red LED: Inclusion and Exclusion Mode
Green LED: Send Data Indication
Host Interface: TTL UART (3.3V) compatible to Raspberry Pi GPIO pins
