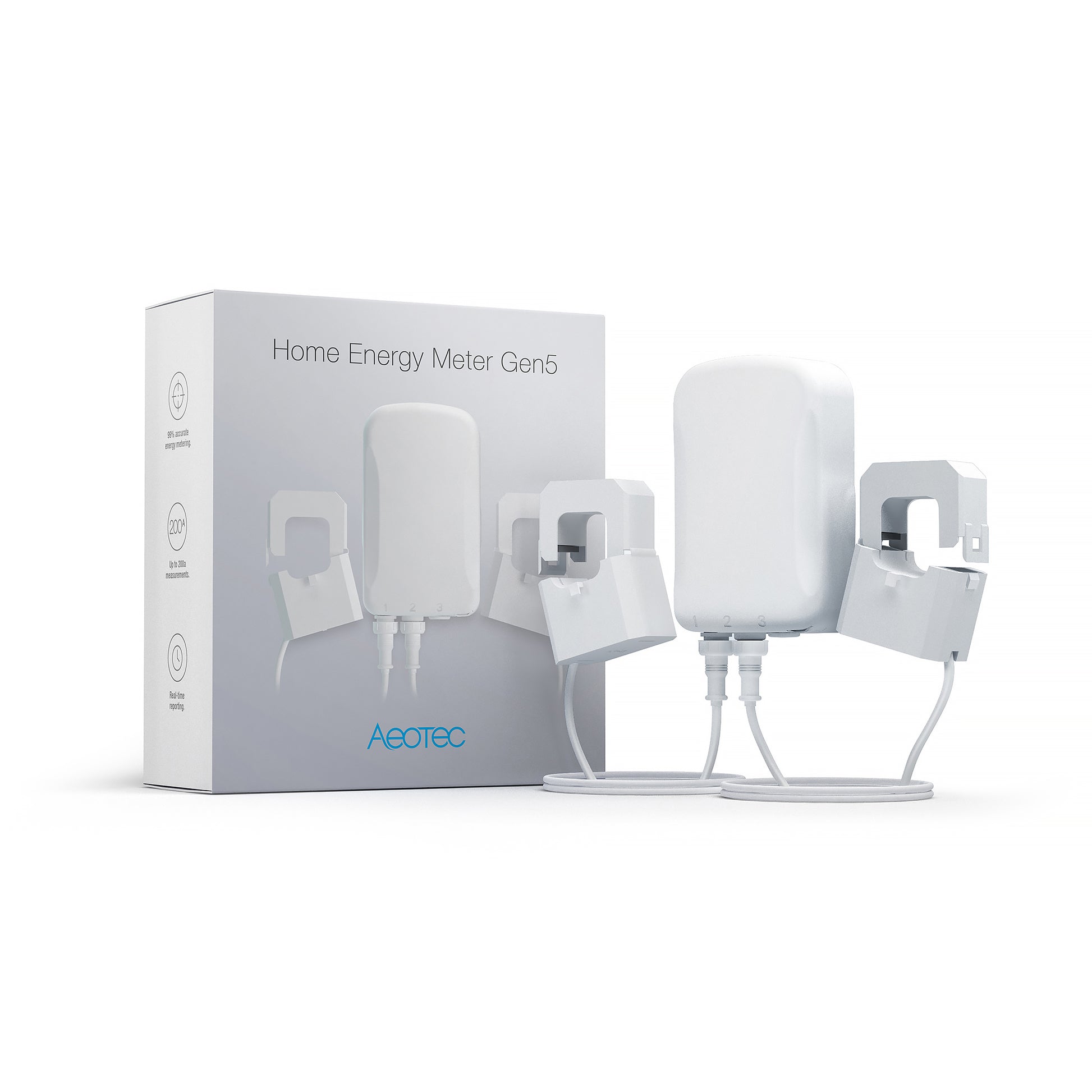

Home Energy Meter Gen5 (ZW095-A)

Aeotec Home Energy Meter Gen5 (ZW095-A)

Rating (4.6)
Z-Wave Plus
500 series
Unit Price
Regular price $11599 USD
Sale price $11599
Regular price $120.99 USD
Calculated at checkout

With the Gen5 Z-Wave Plus Home Energy Monitor, users can learn to save money through reduced energy use by seeing how and when they are using it within their home. It can wirelessly report immediate wattage and kWh usage to central control point gateways such as the and can be easily and safely installed by anyone

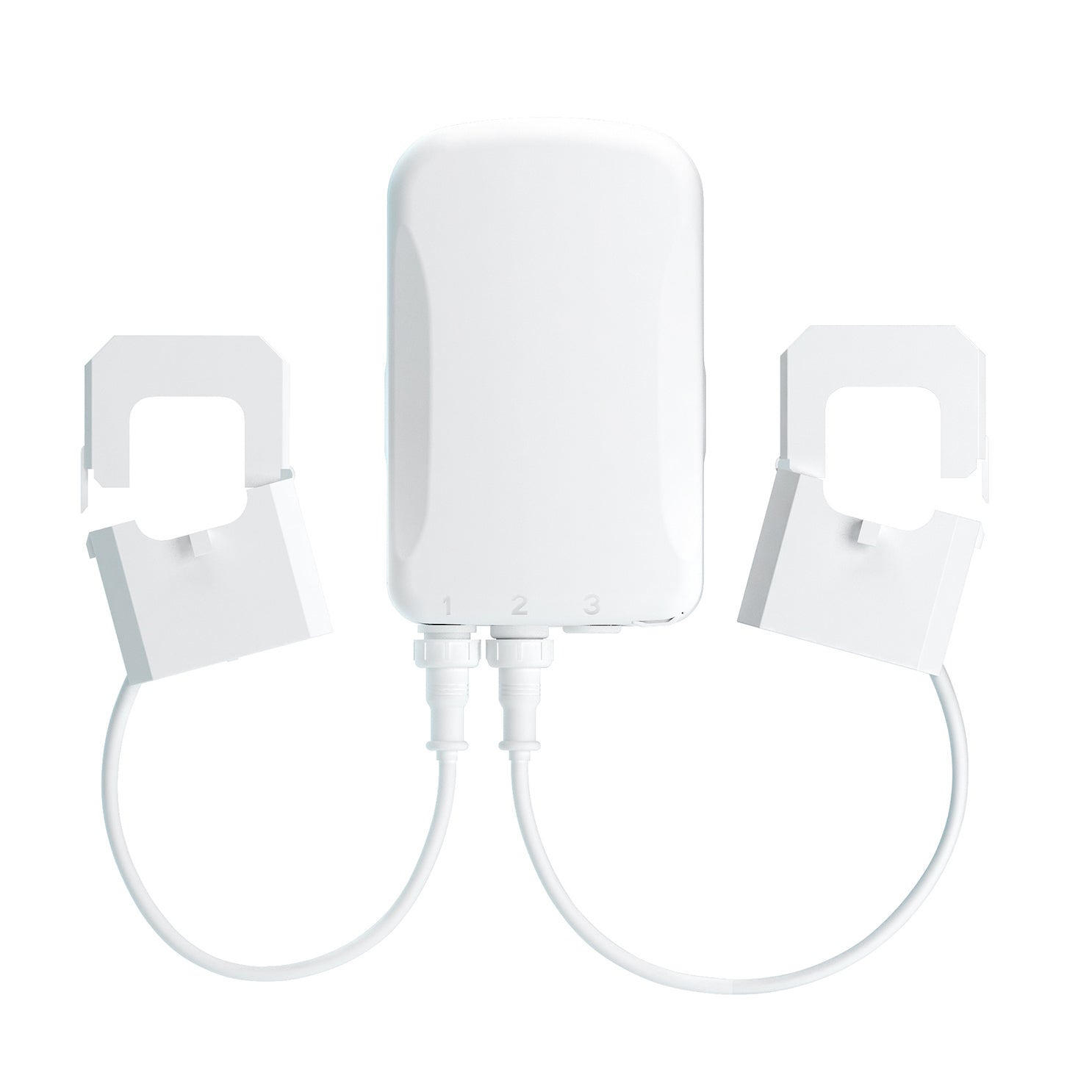

This Energy Monitor's current transformer clamps fasten around the AC mains in your circuit box for installation and have been weatherized to the international IP44 standard to be resistant to rain and snow.

The monitor will immediately begin reporting energy usage information in either wattage or kilowatt hours to your Z-Wave gateway so you can view the data on your computer. All communications are done wirelessly over Z-Wave's latest 500 series chipset and have a transmission range of up to 500 feet outdoors and 300 feet indoors.


Product Dimensions: 99 x 66 x 34 mm



AES128 Security:Yes

Reactive Power:

Yes (1 and 2 phase only)

Powering Method:

US - Plugin

Input (voltage, frequency, max current consumption):

120V~, 60Hz, 20mA (USA version, 2P)

Standby consumption: < 1.8W.

Measure range of voltage:

80V~ to 150V~ (USA version, 2P)

Measure range of current:0A to 200A.

Measurement Accuracy:Over 99% (if current is greater than 0.05A).

Operating humidity:  8% to 80%.

Operating temperature:

0°C to 40°C

32°F to 104°F.

Operating distance:

Up to 427 feet outdoors.

Up to 130 metres outdoors.

Installation & Manuals

Installation Note: Due to the potential danger of electrical shock, this product should only be installed into the circuit box by a licensed electrician.
