Aeotec MultiSensor 6 - 6 in 1 ZWave Sensor - Gen 5 ZWave Plus - ZW100A

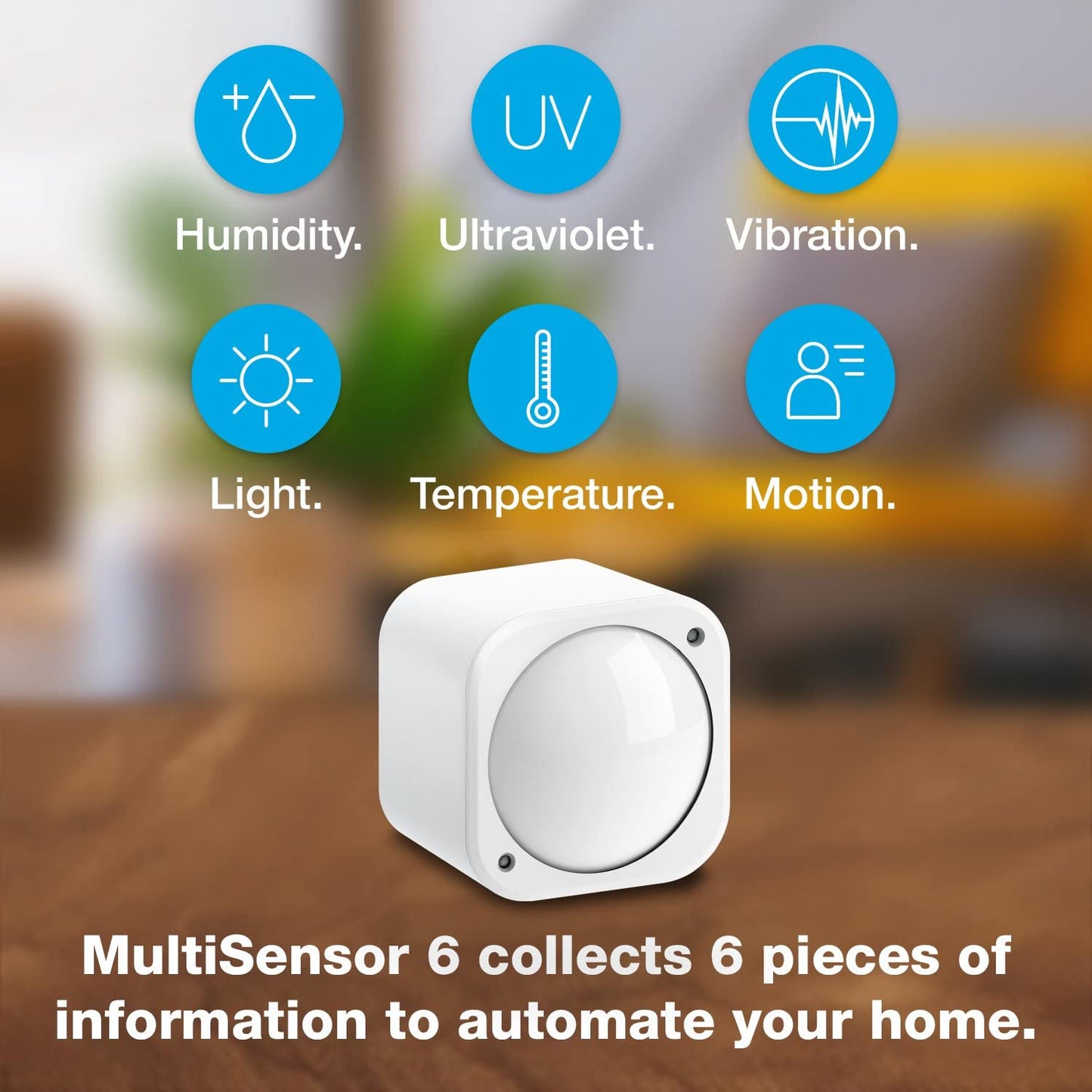

MultiSensor 6 is the foundation of a modern smart home. Its perfectly small exterior hosts the technology for real-time intelligence. Includes motion sensor, temperature sensor, humidity sensor, light (lux) sensor, UV sensor, and vibration sensor.
Designed and calibrated to be as accurate as it can be, MultiSensor 6's accuracy varies as little as ±0.2%. The device measures ultraviolet light and can protect your family's health and your furniture from bleaching. With the newly added vibration sensor, MultiSensor 6 makes your environment secure like never before.
MultiSensor 6 is a part of Aeotec by Aeon Labs' Gen5 range of Z-Wave products. That means that it outperforms all that has come before it. It's built around the latest Z-Wave 500 series chip and firmware, providing a 50% greater wireless range and a 250% faster communication speed over previous Z-Wave products. It has AES 128 bit security encryption built right in. You need a Z-Wave gateway which operates with the 500 series chip products to take full advantage of the device.
Please consult the manufacturer of your Z-Wave hub to make sure it supports all MultiSensor 6 features.

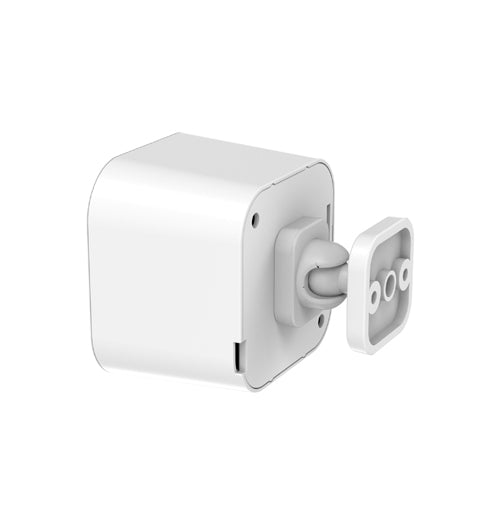

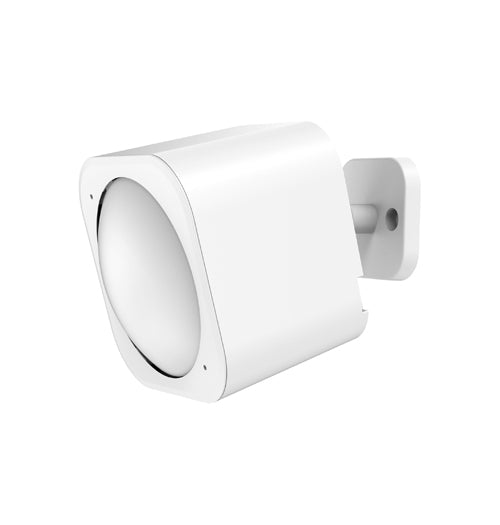

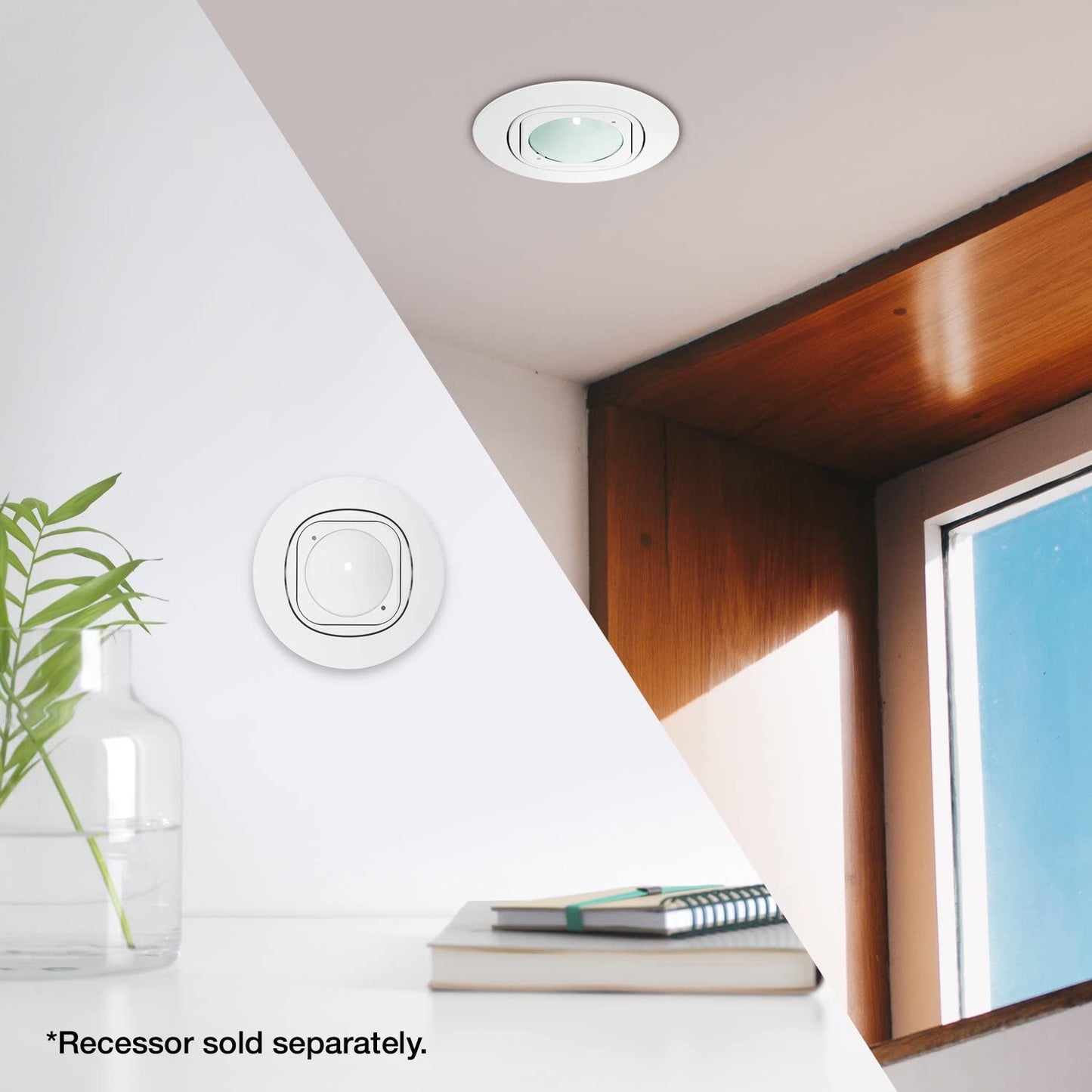

The Aeon Labs MultiSensor 6 is battery or DC powered (USB port).It comes with a bracket which allows it to be installed on a shelf, in the corner of your room, anywhere on a wall, or even in the ceiling (recessor sold separately). It's light enough to be taped to the desired surface. The device can be used outdoors with the motion sensor disabled.
- Motion Sensor : 16 feet, and 120° field of view
- Humidity Sensor : 20% to 95%, accuracy:+/- 5% at 77°F
- Temperature Sensor : 14°F (-10°C) ~ 140°F (60°C), accuracy: +/- 32.9°F (0.5°C)
- Light Sensor : 0 lux to 1000 lux
- Vibration Sensor : acts as tamper switch, ON or OFF
- Operation Temperature (Top): -4°F (-20°C) ~ 140°F (40°C)
- Storing Temperature: -40°F (-40°C) ~ 176°F (80°C)
- Working Humidity: 8% ~ 80%
- Operational site: Indoor and outdoor
- Power: DC 5V 500mA or 2 x CR123A battery
- Weight: 2.6 oz
- View User Manual
* To save file locally, Right click & Save Target As.
