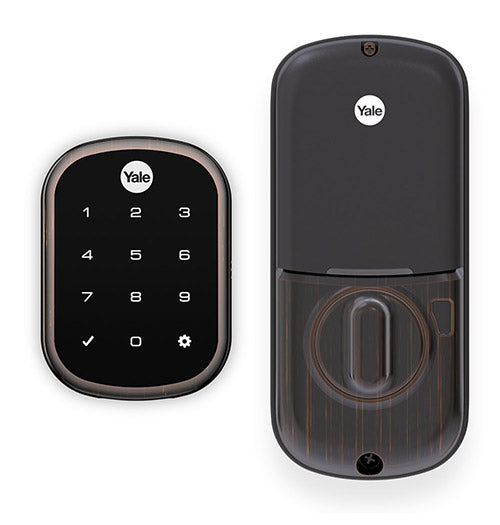

Keyless Touchscreen Deadbolt Door Lock with Z-Wave; Oil Rubbed Bronze (YRD256-ZW2-0BP)

Yale Keyless Touchscreen Deadbolt Door Lock with Z-Wave; Oil Rubbed Bronze (YRD256-ZW2-0BP)

Replaces your existing door lock with ease

Rating (4.6)
Z-Wave Plus
500 series
Unit Price
Regular price $27194 USD
Calculated at checkout

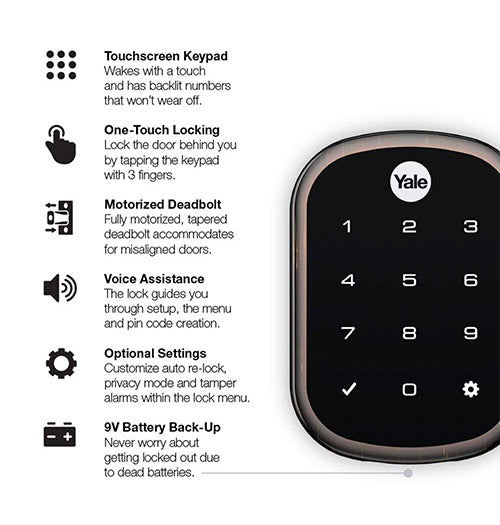

Easily secure your home’s door without a key and prevent both lock picking and bumping by replacing your existing, standard deadbolt with the Yale Assure Lock SL with Z-Wave Plus compatibility. This electronic, motorized deadbolt features a slim design and offers a touch-capacitive keypad on the outside and a thumb-turn knob on the inside. To unlock the door from outdoors input your 4-8 digit code into the keypad; indoors simply twist the thumb-turn. Locking your door is as easy as giving the touchscreen a tap to activate the motorized lock or using the thumb-turn.

  • Slim, key-free deadbolt eliminates risk of lock picking and bumping
  • ANSI/BHMA Grade 2 for strong, reliable security
  • Weather-resistant keypad for outdoor installation
  • Lock or unlock via your Z-Wave hub's app
  • Lock or unlock via the key paid with a access code
  • 25 separate codes available when operated without Z-Wave. Give unique codes to friends, family or workers. Remove and manage individual codes at any time.
  • Lock with only a tap on the touch screen
  • Easy installation and voice-assisted programming with a 24/7 help line also available from Yale
  • Z-Wave Plus compatibility and extra features through compatible gateways:
    • Lock and unlock via your app whether you're at home or away
    • Create and manage up to 250 unique entry codes instead of 25
    • View access history log to monitor when property accessed and by whom
    • Trigger different, automated scenes when correct or incorrect codes entered into keypad
    • Lock out all users at once
  • Illuminated touchscreen for nighttime code entry
  • Battery-powered with optional battery backup port for functionality should the batteries run flat

This unit from ZWaveProducts ships with both:

  1. Yale's YRD256 door lock in rubbed bronze
  2. Yale's AYR202-ZWV-USA Z-Wave Plus smart module for connectivity with Z-Wave gateways. Typically available separately for $99.


Lose Your Keys. For Good. Unlock and lock your home with ease from the backlit touchscreen keypad. Create unique pin codes for friends and family and remove codes whenever you need to. This Yale Assure Lock features Z-Wave technology and seamlessly integrates into 50+ home automation and security systems including SmartThings,, Honeywell, Vivent, Vera, Wink and more! When added to most Z-Wave automation systems, lock and unlock your door, create pin codes, view access history and receive notifications from anywhere. The lock is tamper resistant, easy to install and even easier to use! *Features may vary based on Z-Wave controller.


  • Slimmest touchscreen deadbolt on the market from the #1 smart lock brand in 2017, voted by CEPro
  • Lock and unlock, manage pin codes and receive notifications from anywhere with most Z-Wave smart home systems including Samsung SmartThings and wink
  • Unlock using by entering your unique pin code on the backlit, touchscreen keypad - lock the door behind you by simply tapping the keypad
  • 9V battery Terminal prevents lock-out due to dead batteries
  • Quiet motorized deadbolt, all-code lockout for privacy, weather resistant gasket and tamper resistant battery cover

In addition, the Yale Touchscreen Deadbolt With Z-Wave alerts you when the batteries are running low so you always have peace of mind. If you connect the deadbolt to your home control system, your system will also alert you of low battery life. It will send you automated "low battery" texts right to your smartphone. You can guarantee a safe, secure home with the Yale Assure Lock Deadbolt.


  • Product Dimensions: 13.97 x 13.97 x 25.4 cm; 1.36 Kilograms
  • Batteries: 4 AA batteries required (included)
  • Backup battery: standard 9-volt battery (not included)

Installation & Manuals

  • 24/7 technical support and installation help available from Yale by calling 1-855-213-5841
  • Pairs with contemporary or traditional knobs, levers and handle sets
  • Designed for use with most standard interior or exterior doors; installs on doors measuring 1-3/4 to 2-1/4 inches thick (1-3/8" requires special thin door gasket)
  • Adjustable latch fits existing backset of either 2-3/8" or 2-3/4"
  • Suitable for right-handed or left-handed operation
  • Features a tapered bolt to accommodate misaligned doors
  • All necessary hardware, as as latch, strike, and screws, are included
  • Ships with template for door preparation
  • Rubber gasket increases protection from outdoor elements


Yale reports their Z-Wave Plus module as being compatible with more than 50 Z-Wave gateways including those from Samsung SmartThings, Wink, Ring, Arlo, systems, Qolsys, Honeywell, and ADT. Via such gateways, the lock is also compatible with Amazon Alexa and Google Assistant.
