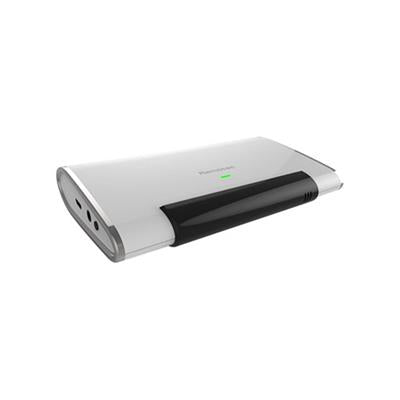

ZXT-600, AC Master, is a Z-Wave plus compliant Z-Wave-to-IR Bridge to control split air conditioner by receiving Z-Wave command and translating to Infrared command. With its comprehensive built-In and cloud-stored IR database (library), ZXT-600 can control different brands and models of air conditioners worldwide.
- Description
- Specs
- Docs
ZXT-600 is a security enabled Z-Wave plus device. A security Enabled Z-Wave Plus Controller must be used in order to fully utilize the product.
ZXT-600 is a Z-Wave slave device, it depends on gateway to setup particular AC brand with correct IR code. Different gateway has different user interface for setup.
Features:
- Working as a Z-Wave thermostat
- Convert Z-Wave commands to IR signal for up to 250 Brands of split Air Conditioner with best class of worldwide AC model coverage
- Ever green up-to-date cloud-based IR code library
- Easy-to-use and advanced learning search approach
- Room temperature feedback
- Flawlessly work with any Z-wave compliant gateway
- Support classic inclusion and NWI
- Built-in air conditioner IR codes, as well as cloud-based IR code library
- IR learning back up
- Built-in temperature sensor for room temperature report
- Working on battery (2x AA batteries) or USB power
TECHNICAL SPECIFICATIONS
- Z-Wave Plus compliant
- SDK version: SDK 6.61.00
- Support built-in and host IR code library
- Z-Wave OTA upgradable
- Alkaline Battery AA x 2pcs or 5Vdc USB power
- Battery life up to 1 year
- Wide angle IR emitting
- External IR emitter cable 3.5mm jack
- Frequency: 908.42MHz
- IR range: minimum 7-10m line of sight
- IR frequency: 38KHz Carrier Frequency
- Dimension (inches): 5.2 x 3.2 x 0.9
- Weight (device): 3 ounces
ZXT-600 Resources:
SmartThings Installation Guide and Device Handler:
