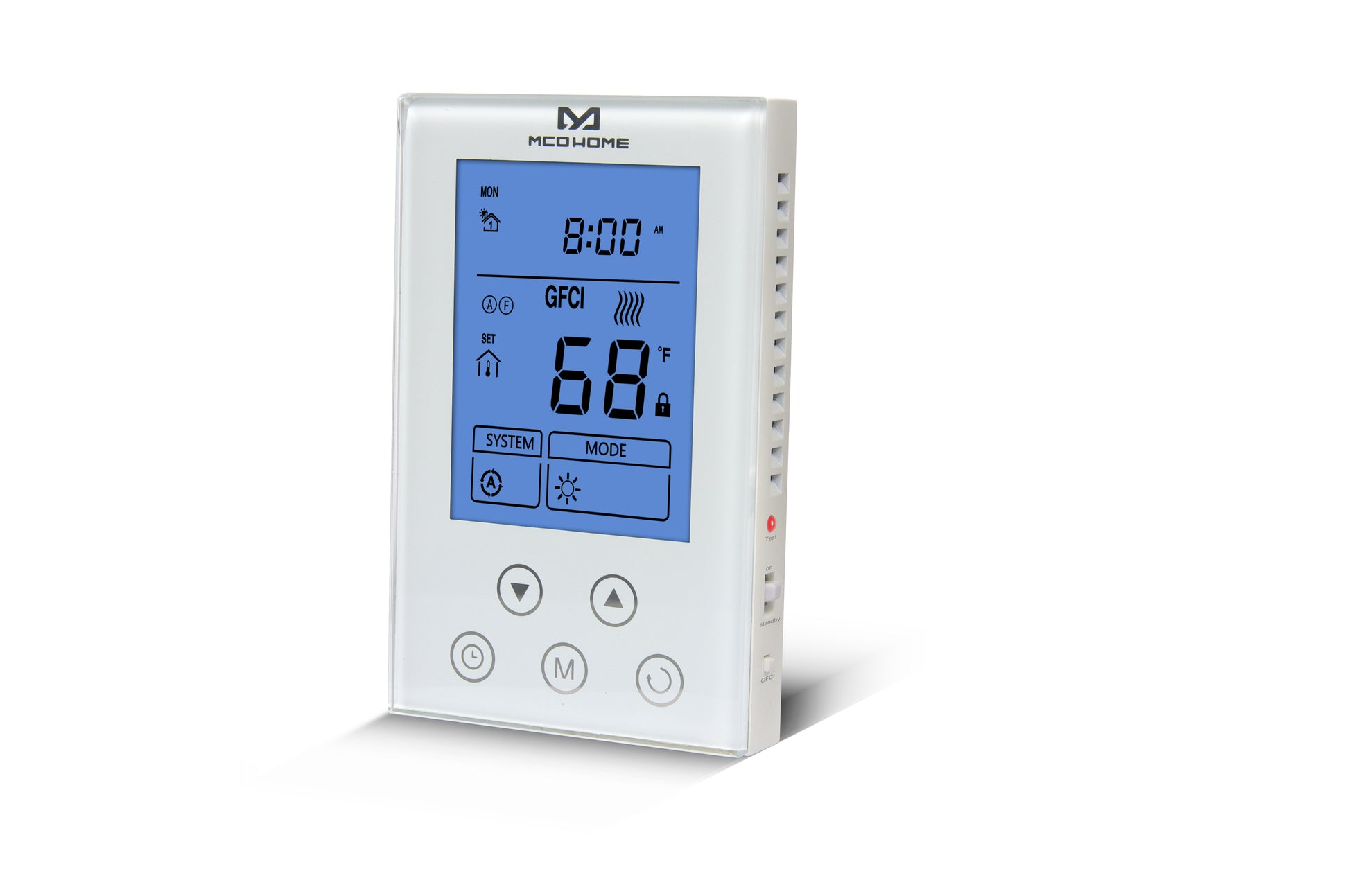

MCO Home Z-Wave Plus Thermostat for Electrical Heating Systems - MH4-US

MH4 is a Z-Wave Plus enabled thermostats for indoor temperature control. It is mainly applied to control electrical heating systems, such as heating film, heating cable, heater, etc. With the floor over-heating protection and GFCI (Ground Fault Circuit Interrupter) function, this device works as a reliable indoor temperature controller. Besides its stable performance, the unique design is also an attractive feature for end-users. Moreover, a built-in Z-Wave module makes it a smart device that can be operated in any Z-Wave network with other Z-Wave certified devices.
  • Description
  • Specs
  • Docs


  • Tempered glass panel with capacitive touch buttons
  • With two sensors to detect indoor& floor temperature
  • Floor overheating protection
  • GFCI (leakage protection): level 5mA
  • Multi-working modes to meet various user needs: Time Period(Schedule) Mode; Comfort Mode; Energy-Saving Mode; Vacation Mode
  • Programmable schedule: 4 periods each day of 7 days; 5+2; 5+1+1

Technical Specification:

  • Power supply: AC120V/AC240V, 50/60Hz
  • Max output: 1800W at 120AC ; 3600W at 240AC
  • Self-consumption: <2W
  • Temp. format: ℃ /℉ ; Time format: 12h / 24h
  • Z-Wave frequency: USA 908.42MHz
  • Panel dimension: 76*120*20mm
  • Vertical installation:hole pitch 82mm (USA 120 box)
