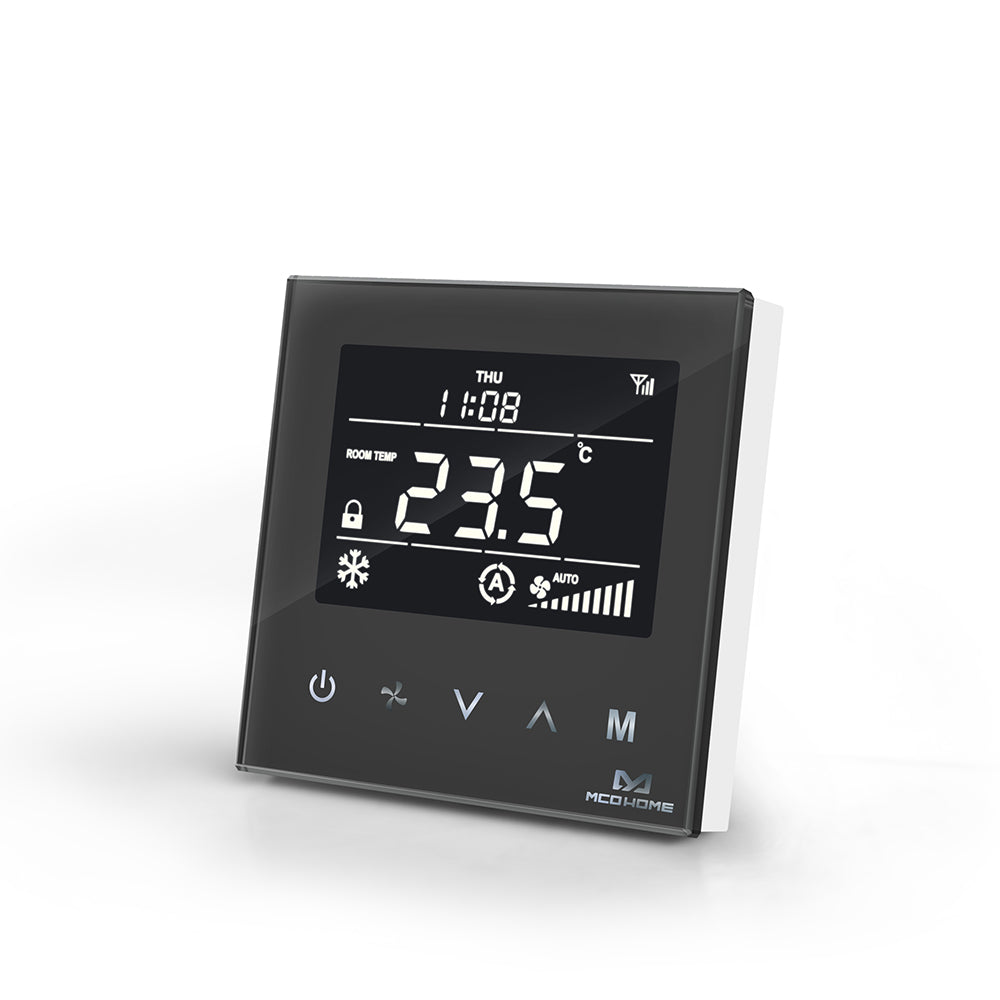

MCO Home Z-Wave Plus Thermostat for 4-pipe Fan coil system (black) - MH8-FC4-US-B

SKU MH8-FC4-US-B
$79.99
MCO Home Fan Coil Thermostat is a Z-Wave enabled device for indoor temperature control. It is mainly applied to a 4-pipe Fan coil system. It can read room temperature and local time, and automatically control fan speed based on the temperature difference. The device is of high reliability and practicability. This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.
  • Description
  • Specs
  • Docs

Features:

  • Capacitive touch buttons
  • Tempered glass panel, PC alloy enclosure
  • Precise temperature calibration function
  • Non-volatile Memory, working state saved even power failure
  • Intelligent on/off control of 3-speed fan, electric (ball) valve or air-valve
  • Easily steel frame back plate installation

Technical Specification:

  • Power Supply:AC85V~260V, 50/60HZ
  • Resistive Load: ≤3A
  • Self Consumption:< 1W
  • Temperature Sensor: NTC 15K
  • Display Accuracy: 0.1 ℃
  • Working Environment:0~55℃; <95% RH(Non-condensation)
  • Temp. Setting :5~35℃(41~95℉)
  • Dimension:86* 86*42mm
  • Hole Pitch : 60-65mm ( 86 Standard junction box)
  • Z-Wave Frequency: 908.4MHz(US)
