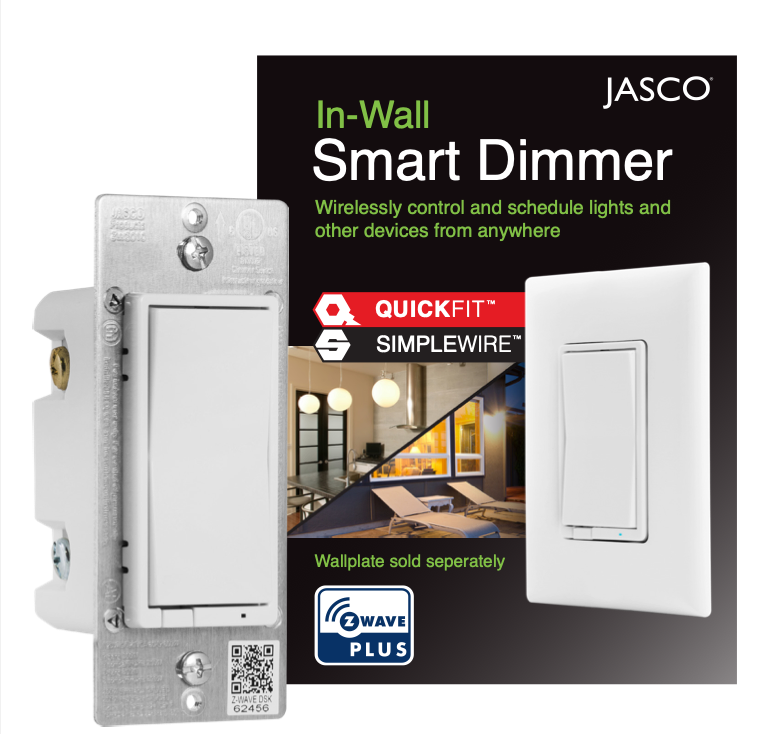

Z-Wave In-Wall Smart Dimmer with QuickFit™ & SimpleWire™ – White/Almond - 46564

Upgrade Your Smart Home with Effortless Lighting Control

Transform your home lighting with the Jasco Z-Wave In-Wall Smart Dimmer (46564), featuring QuickFit™ and SimpleWire™ technology for an ultra-easy installation. Designed for seamless integration into your Z-Wave smart home system, this in-wall dimmer allows you to wirelessly control and schedule your lights from anywhere. Whether you use Alexa or Google Assistant (via a compatible hub), adjust brightness levels with a tap or voice command to create the perfect ambiance.

Key Features:

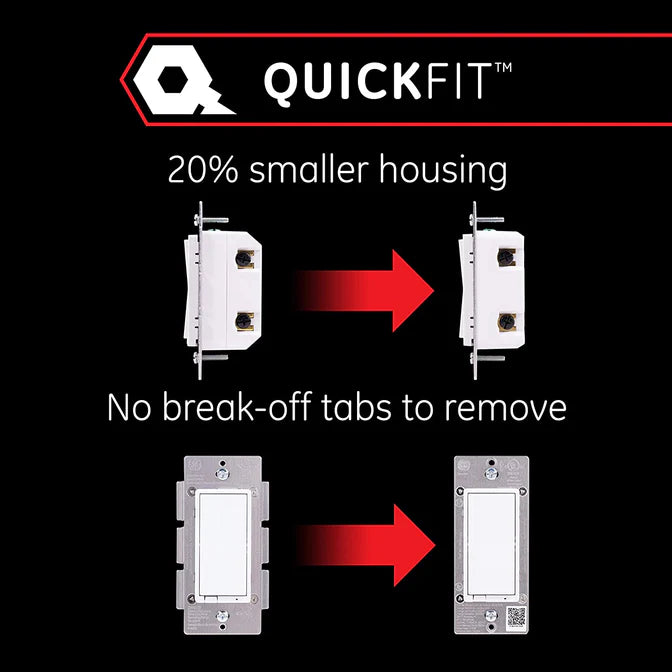

✔ QuickFit™ Design – 20% smaller housing depth compared to previous models, making installation easier in tight spaces and older switch boxes.

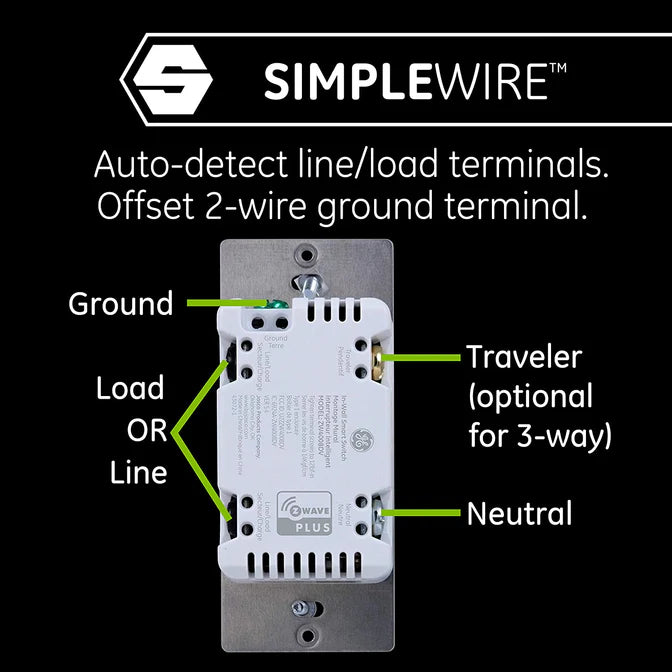

✔ SimpleWire™ Technology – Auto-detecting line/load terminals for faster setup and dual ground ports to simplify daisy-chaining in multi-switch setups.
✔ Smart Dimming Control – Adjust brightness from 0-100% for dimmable LED, CFL, incandescent, and halogen bulbs to reduce energy costs and extend bulb life.
✔ Multi-Switch Compatibility – Functions as a single-pole switch or can be paired with up to four Z-Wave Add-On Switches for 3, 4, and 5-way setups.
✔ Z-Wave Plus Certified with S2 Security – Enjoy enhanced wireless range, faster processing, and over-the-air firmware updates for a future-proof smart home.
✔ Voice & Remote Control – Works with Alexa & Google Assistant (requires a compatible Z-Wave hub, sold separately) for hands-free lighting control.
✔ Customizable LED Indicator – Blue LED light helps locate the switch in the dark, with adjustable settings for on, off, or inverted mode.

Technical Specifications:

• Power: 120VAC, 60Hz
• Maximum Load: 600W Incandescent, 300W Dimmable CFL/LED
• Z-Wave Signal Frequency: 908.4/916 MHz
• Range: Up to 150 feet from controller or closest Z-Wave device
• Operating Temperature: 32°F – 104°F (0°C – 40°C)
• Wiring: Requires Neutral Wire
• Compatibility: Works with most Z-Wave hubs (SmartThings, Hubitat, Ring, Home Assistant, etc.)
• Wallplate: Not included (compatible with standard Decora wall plates)

What’s in the Box?

✔ Jasco Z-Wave In-Wall Smart Dimmer

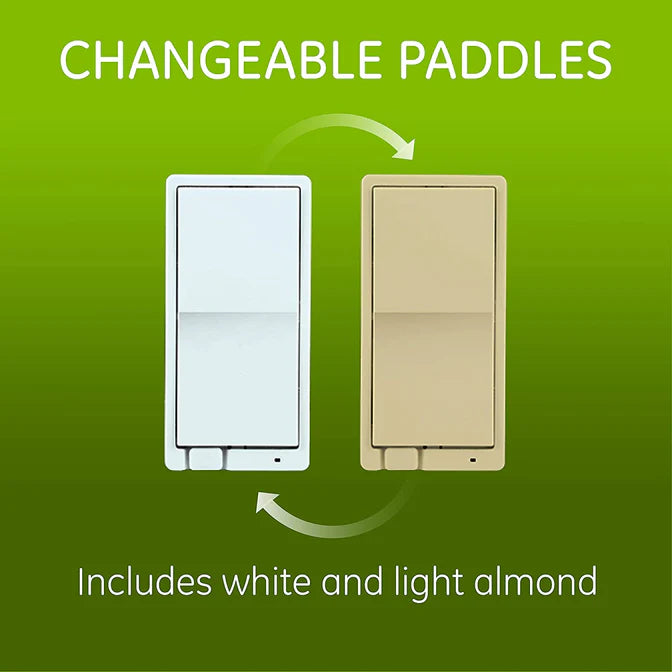

✔ Interchangeable Paddle Switches (White & Light Almond)
✔ Quick Start Guide

Easy Installation & Seamless Smart Home Integration

Take control of your lighting with the Jasco Z-Wave In-Wall Smart Dimmer—a reliable, feature-packed addition to any smart home. Whether you’re setting the mood or automating your daily routine, this dimmer offers effortless lighting control and compatibility with leading smart home systems.
