Inovelli Smart Fan and Light Canopy Module - Blue Series ( Zigbee )

Inovelli Smart Fan and Light Canopy Module - Blue Series ( Zigbee )

SKU
VZM36
Technology
Zigbee
Unit Price
Regular price $5500 USD
Shipping
Calculated at checkout

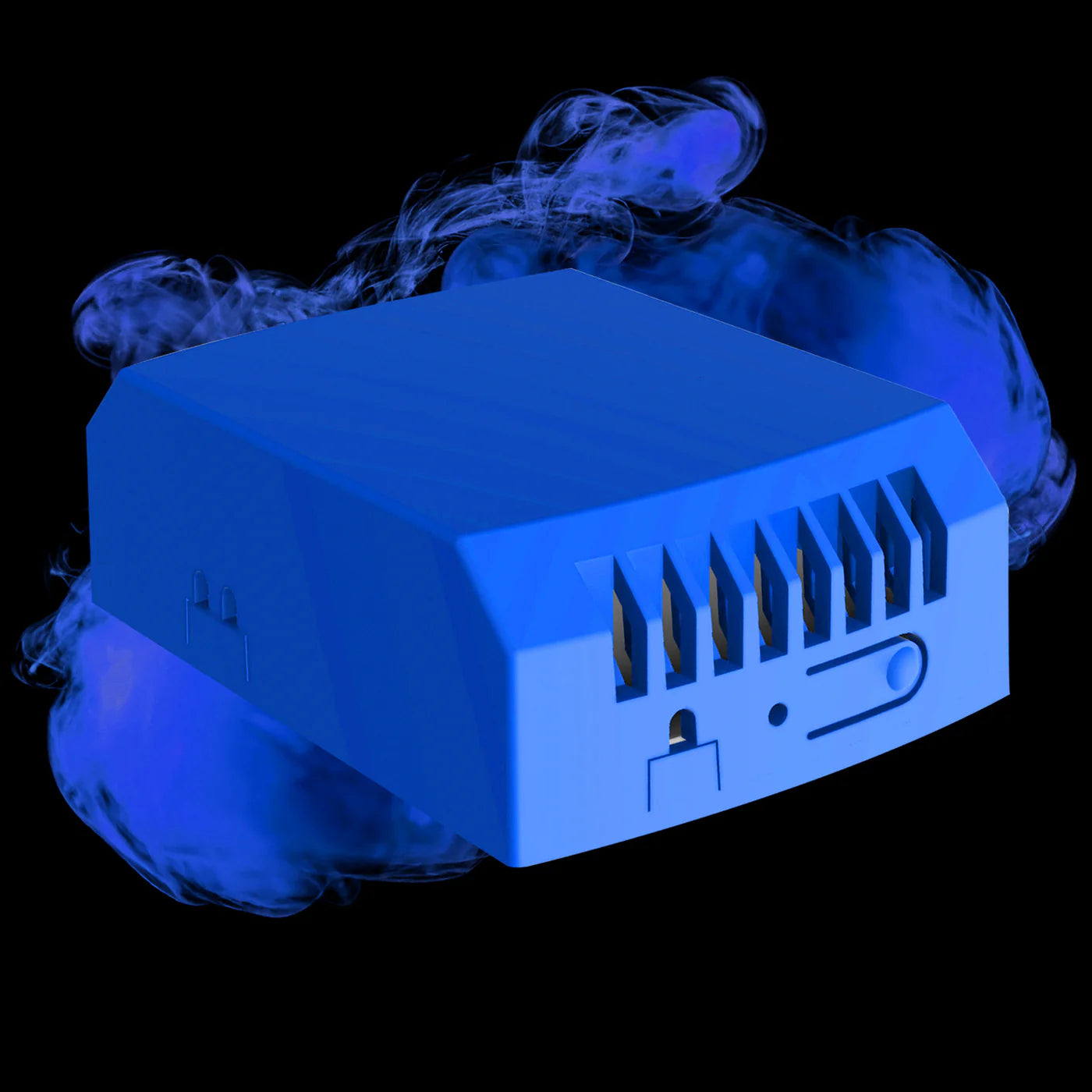

The Inovelli VZM36 Fan/Light Canopy Module converts ordinary ceiling fans into fully smart, app-controllable devices — without replacing your wall switches. Designed for installations where the fan and light are controlled at the canopy instead of at the wall, the VZM36 brings precision control and automation to your fans and lights.

Whether you’re upgrading a bedroom, living space, or office, this compact module installs in the fan canopy and works with your preferred smart home protocol to deliver smooth fan speed control + independent light dimming — all from your phone, voice assistant, or automation engine.

Description

🧠 Smart Control for Fan Speed + Light

Unlike traditional modules that only handle lighting, the VZM36 gives you separate control of fan and light functions:

  • ⚡ Variable fan speed control — fine-tune airflow instead of simple ON/OFF
  • 💡 Dimmable lighting control — smooth dimming, not just high/low
  • 🔁 Independent operation — adjust fan and light separately
  • 📱 Works with scenes & automations for schedules, triggers, and more

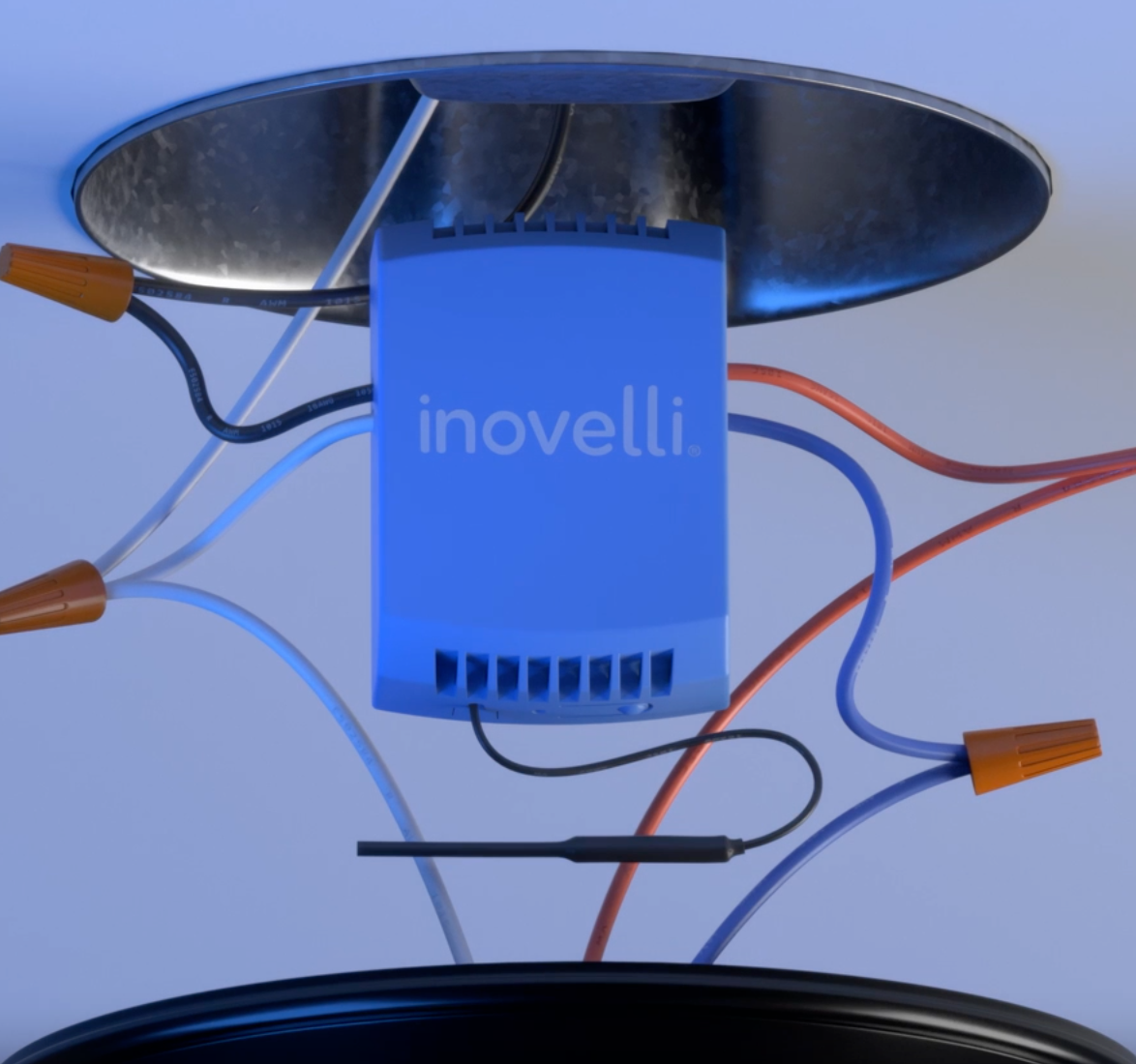

🛠 Easy Installation, Compact Design

The VZM36 is engineered to fit neatly inside fan canopies where space is limited, making this perfect for retrofits and upgrades:

  • 🧰 Slim footprint — fits most standard ceilings
  • 🪛 Compatible with common fan wiring configurations
  • 📘 Step-by-step install guide included
  • 🔌 Works behind existing wall controls — no need to rewire switches
  • 👌 Ideal for multi-speed fans + dimmable LED lighting

📡 Connects to Your Smart Home (Protocol-Dependent)

The VZM36 integrates into your automation platform so you can:

  • Control speed & light from apps or voice (Alexa/Google/HomeKit, depending on controller)
  • Use triggers (temperature, motion, schedules) to automate fan/light behavior
  • Monitor status at a glance

⚠️ Requires a compatible smart controller/hub (protocol support varies by region/model).

🔍 Why Customers Love It

  • 👍 Modern smart control without replacing switches
  • 🛋 Great for ceilings where wall access is limited
  • 📈 More precise control than standard pull-chains or basic remotes
  • 🏠 Seamless automation with your preferred ecosystem

Specifications

  • Protocol: Zigbee 3.0
  • Signal Frequency: 2.4 GHz
  • Power: 120V AC, 60Hz
  • Maximum Load - Fan: 1.2 Amps
  • Maximum Load - Light: 300W Incandescent, 150W LED, 100W CFL
  • Dimensions: 1" (Depth) x 3" (Height) x 2.13" (Width) / 2.54cm x 7.62cm x 5.41cm
  • Range: Up to 100 meters (line of sight) between the hub/repeater and the module
  • Operating Temperature: 32-95° F (0-35° C)
  • Motor Type: AC Motors ONLY (DC Motors are not supported)
  • Certifications: ETL (5027290), FCC (2BBTA-VZM36), IC (24756-VZM36), Zigbee Certified

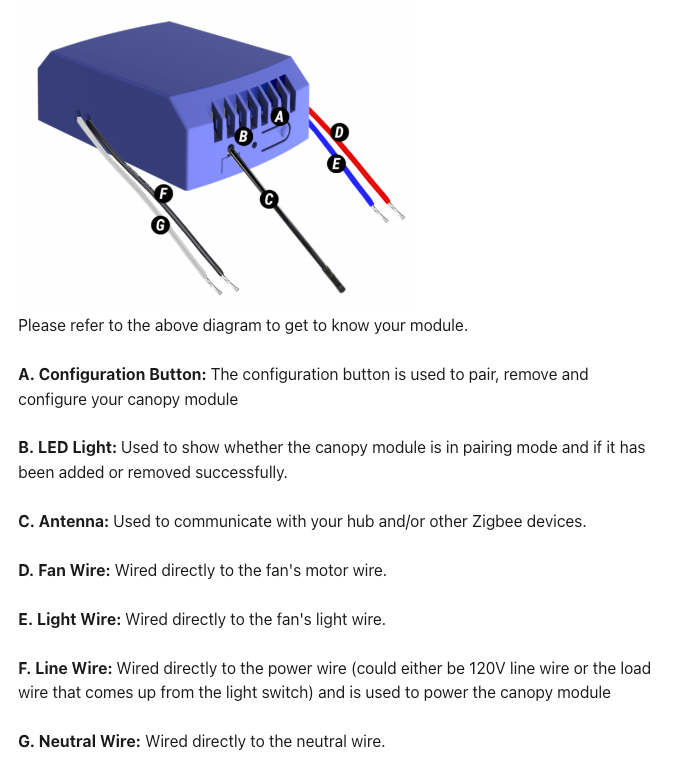

Installation & Manuals

  • Constant Power: The module requires constant 120V power to function.
  • Wiring: Requires Neutral wire at the canopy.
  • Pairing: The device uses a configuration button and LED indicator for pairing, which flashes blue when in pairing mode.
    SmartThings Home Assistant Zigbee2MQTT Hubitat
