Aeotec WallSwipe, Wall Panel Controller with Slider for Dimmer Switches, Curtain Blinds, Appliance - ZW158

SKU ZW158
$49.99

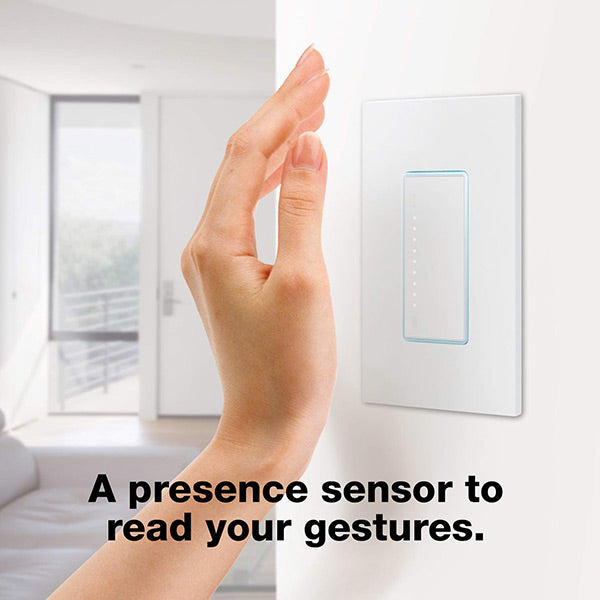

WallSwipe extends the power of Aeotec’s Nano range of in-wall, Z-Wave controllers to offer a multitude of different wall switch controls including tap, long-press- swiping and sliding. WallSwipe’s inbuilt IR sensor extend the control one further, allowing you to use gestures to control the wall switch from up to 5.9 inches afield.

  • Description
  • Specs
  • Docs

Aeotec’s Nano range for appliances, lighting, and motor control connect your home’s existing electronics to Z-Wave. WallSwipe takes the enhancement another step. Connected to Nano Dimmer, Nano Shutter and Nano Switch, WallSwipe brings a whole new level of control to your fingertips and beyond them. Tap, touch, slide or gesture and you can control whatever WallSwipe is connected to.

WallSwipe creates a Z-Wave switch by fusing together the power of the connected Nano’s Z-Wave Plus, a presence sensor, and touch-sensitive glass normally used in smartphones.

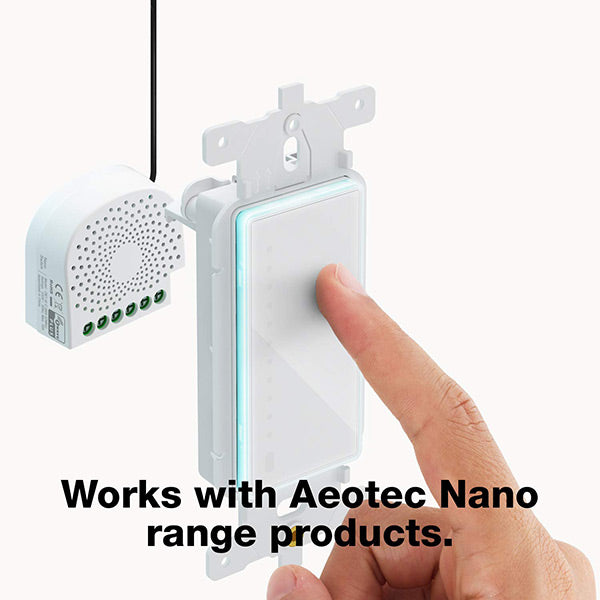

Just like Aeotec’s Nano range WallSwipe is designed to be easy to install. Connecting WallSwipe to a Nano takes seconds; simply plug WallSwipe into a Nano via the connection port. Attaching it to your wall is just as easy. Compatible with 86mm / 3.4″ gang boxes, WallSwipe can be used with both single and multi switch panels and has been designed to work as a wall switch globally. Adaptable, it’s been designed to be compatible with both square and rectangular switch types in the likes of Australia, the EU, the UK, and the USA.

Features:

  • Give your home’s wall switches a modern upgrade. Note: To connect WallSwipe, it requires Aeotec Nano device running firmware 2.0 or greater.
  • WallSwipe extends the power of Aeotec’s Nano range of in-wall, Z-Wave controllers to offer a multitude of different wall switch controls including tap, long-press- swiping and sliding. WallSwipe’s inbuilt IR sensor extend the control one further, allowing you to use gestures to control the wall switch from up to 5.9 inches afield.

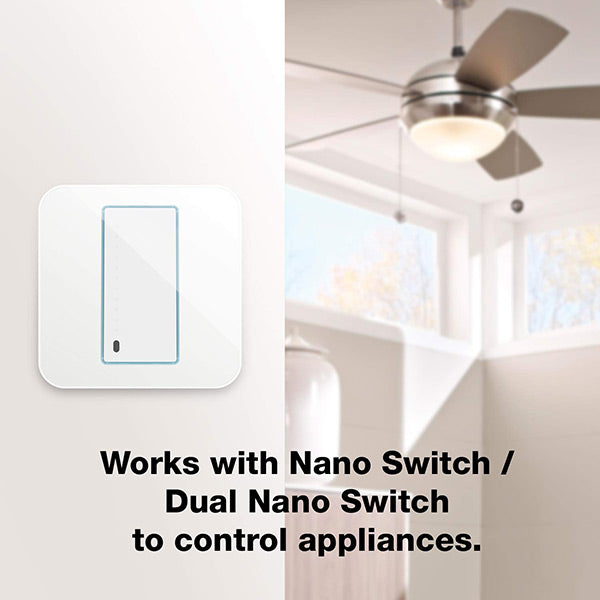

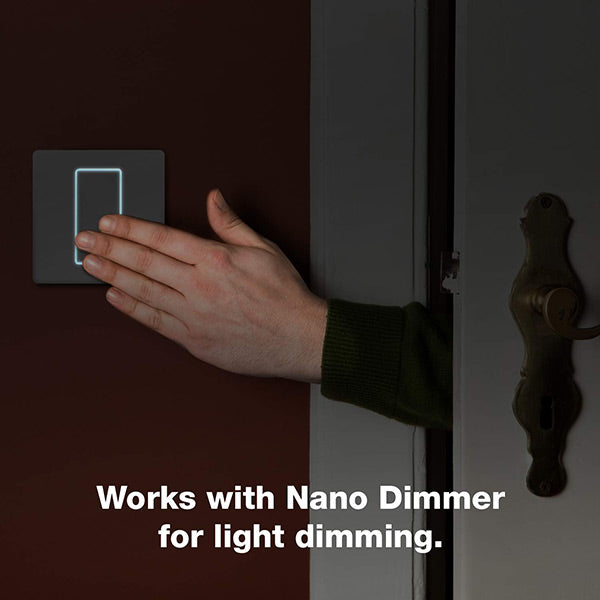

  • WallSwipe is automatically compatible and dependent on any of Aeotec’s Nano, in-wall range, including Nano Dimmer, Nano Switches, Nano Shutter, and Dual Nano Switches. The combination works as a dimmer, one load switch, two loads switch, and motor controller.

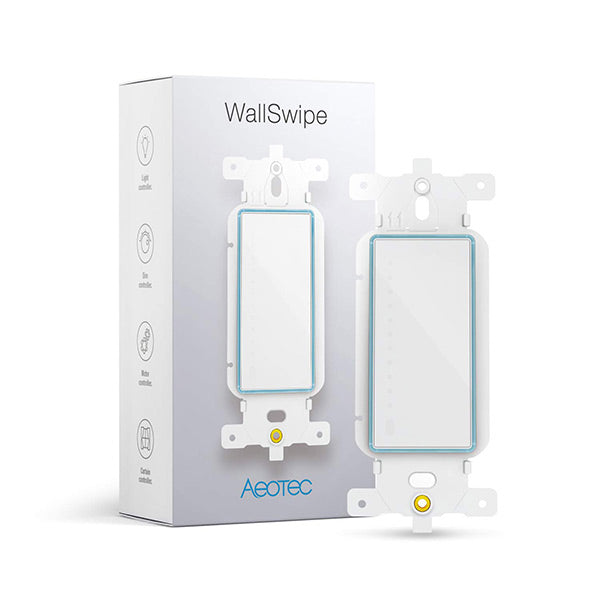

  • The slider indicating lights works to reflect different features when working as a dimmer, switch, or motor controller. The package comes with WallSwipe x 1, manual x 1, connection cable x 1, and screw x 2.
  • Easy to install, simply plug WallSwipe into your Nano via the connection port and affix it to your wall. When installing 2 or more WallSwipes side-by-side, you can disable the gesture control to remove the potential for accidental and incorrect commands.

Technical Specification

Name: WallSwipe
Part Number: ZW158
Item Weight: 2 ounces
Batteries: None
Color: White
Power Source: Supplied by Nano products
Z-Wave Communication: No
Components: WallSwipe x 1, Manual x 1, Screw x 2
Operating temperature: 0°C to 40° - 32°F to 104°F.
