Home Energy Meter 8 – Z-Wave 800 Whole Home Energy Monitor, 2 Clamp, 200A

Take control of your home’s energy use with the Aeotec Home Energy Meter 8, a next-generation whole-home energy monitor built on Z-Wave 800 Series technology.

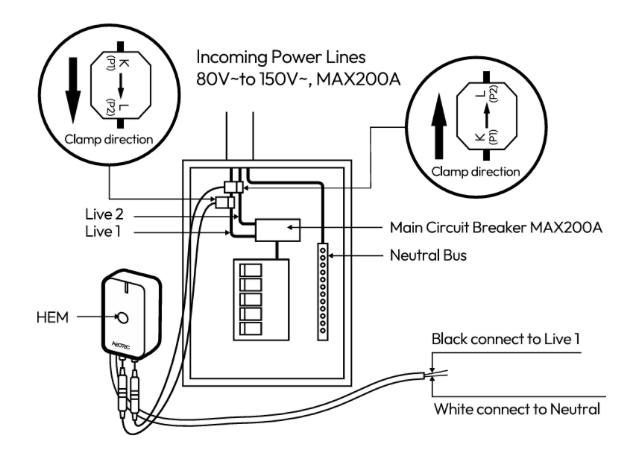

Installed at your electrical panel, Home Energy Meter 8 uses clamp sensors to measure current flowing through your home’s main electrical lines, helping you track real-time power usage, energy consumption, voltage, amperage, and more through a compatible Z-Wave hub or smart home platform.

Designed for North American split-phase electrical systems, the 2-clamp US version supports 120V, 60Hz power and measures current up to 200A. It also features Z-Wave Long Range support, giving it improved wireless performance compared with earlier generations when paired with a compatible Z-Wave Long Range controller. Aeotec lists the US 2-clamp version with 120V input, 80V–120V voltage measurement, 0A–200A current measurement, and 908 MHz Z-Wave frequency.

Whether you want to understand daily energy trends, identify high-usage appliances, or add whole-home power data to your smart home system, the Aeotec Home Energy Meter 8 gives you visibility into what your home is using.

Key Features

• Whole-home energy monitoring
  Track power usage from your home’s electrical panel using clamp-based current measurement.
• Z-Wave 800 Series technology
  Built on Aeotec’s Gen8 / Z-Wave 800 platform for modern Z-Wave performance.
• Z-Wave Long Range support
  Supports Z-Wave Long Range when used with a compatible controller, with Aeotec advertising long-range capability up to 1 mile under ideal conditions.
• Designed for North American split-phase systems
  Hardwire only for powering the unit.  The US 2-clamp model is designed for 120V, 60Hz systems and measures up to 200A.
• Real-time power insights
  Reports energy data such as power, kWh, voltage, amperage, reactive energy, and power factor depending on hub/platform support. Aeotec’s technical specifications list measurements including kWh, W, A, V, kVAh, kVarh, and power factor.
• IP44-rated housing
  Weather-resistant design for protected installation locations. Aeotec lists the device as IP44 rated.
• Works with compatible Z-Wave hubs
  Pair with a compatible Z-Wave or Z-Wave Long Range controller. Aeotec also provides setup instructions for SmartThings pairing.
