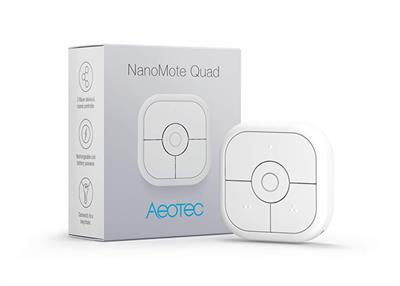

Aeotec NanoMote Quad, Z-Wave Plus S2 remote control, 8 scenes, Rechargeable – ZWA003

by Aeotec
Sold out
NanoMote Quad communicates directly with your Z-Wave gateway. That means that they can control anything connected to that gateway, whether that’s one device at a time or a group of devices all at once, even electronics that aren’t Z-Wave.
  • Description
  • Specs
  • Docs

NanoMote Quad is the full package, offering 4 buttons capable of control up to 12 Autopilot scenes.

Remote controls don’t have to be portable – they just have to be wireless. Like our WallMote Z-Wave switch, NanoMote Quad can be placed or mounted just about anywhere in your home. Whether it’s beside your bed or somewhere else, NanoMotes Quad make it easy to add simple smart home control anywhere in your home.

NanoMote Quad is designed to be used inside your home and outside of it. To make this possible it needs wireless signal optimized for distance. NanoMote Quad can communicate over distance of 328 feet/ 100 meters, with signals repeated via Z-Wave when NanoMotes can’t communicate with your gateway directly.

NanoMote Quad can control entrances to your home, such us garages and door locks. It includes Z-Wave S2, enhancing the remote control with three separate layers of security to help stop hacking, cloning, and unauthorized control.

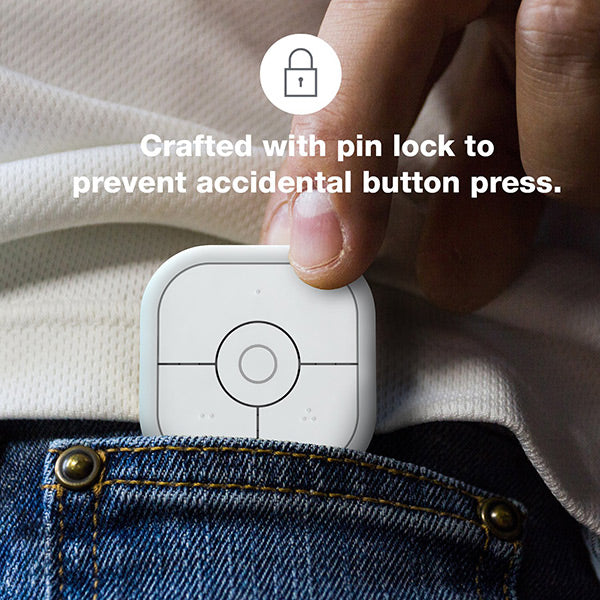

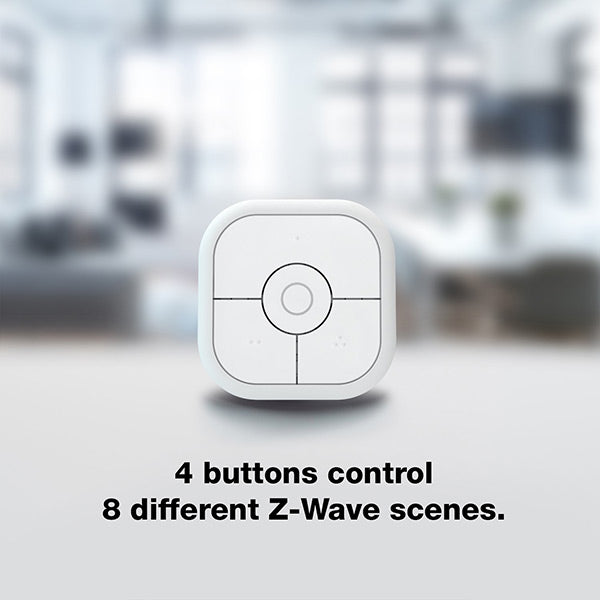

  • Four button Z-Wave remote control for 8 different scenes (long press or short press) with each scene activating up to 5 different Z-Wave devices. Inbuilt PIN lock to avoid accident activation of scenes, especially panic button and emergency scenes.

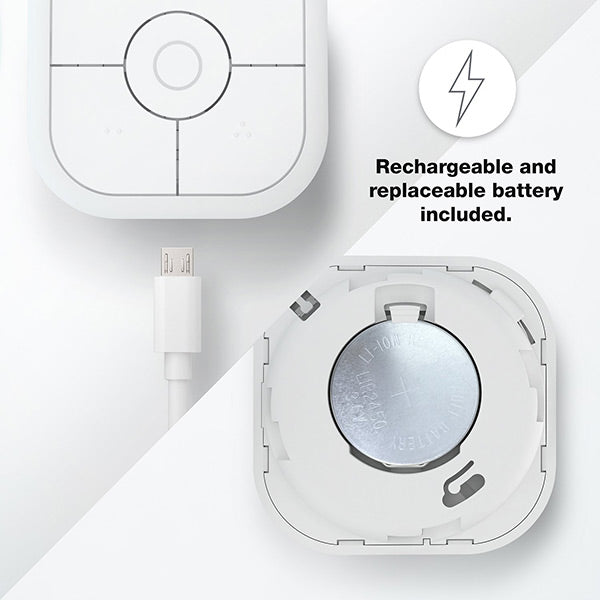

  • Includes replaceable & rechargeable LIR2450. Can be recharged via USB typically after 3 months’ use.

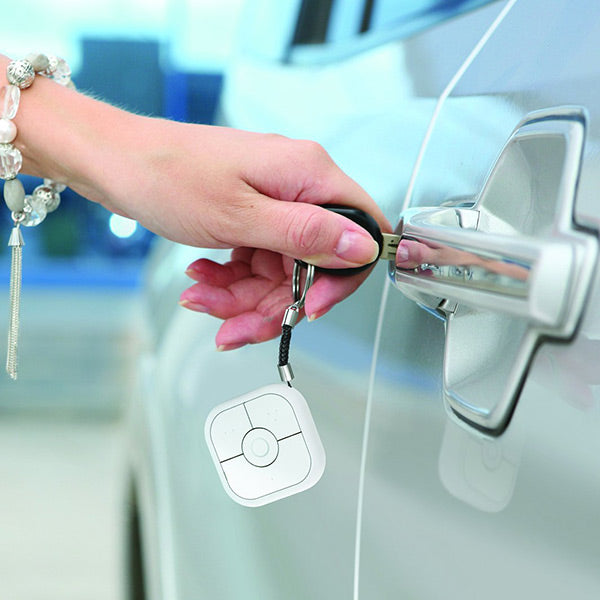

  • Tiny and portable, measuring only 1.96x0.57”, it’s designed as a key chain remote control and ships with keychain loop, user guide, and USB charging cable.
  • Compatible with certified Z-Wave gateways including Samsung SmartThings, Open Z-Wave, Zipabox, HomeSeer, Home Center and more to find from our official webpage.
  • Z-Wave Plus and Z-Wave S2 certified for quicker response time, optimized battery life, better wireless range, and additional wireless security encryption. Z-Wave certification number: ZC10-18036041.

Technical Specification

Name: NanoMote Quad
Part Number: ZWA003-A
Item Weight: 1 ounces
Batteries: 1 Lithium ion batteries required. (included)
Color: White
Power Source: Rechargeable LIR2450, 3.6V
Z-Wave Communication: Z-Wave Plus, Z-Wave S2 Framwork
Components: NanoMote, USB cable, Keychain loop, Manual
Operating distance:

  • Up to 120 metres outdoors. (394ft)
  • Up to 30 metres indoors. (98ft)
